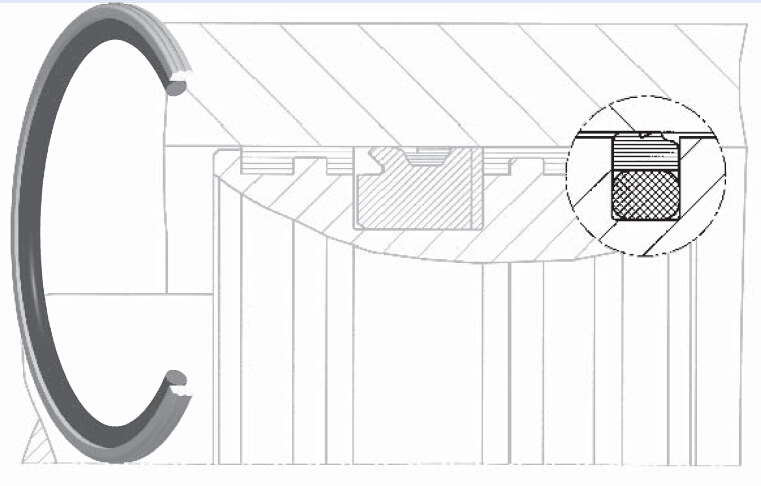

The Walle sealing slide and O-ring seal type GODA-SPE is

a single acting seal with pressure releasing profi le to

one side. The pressure discharge reduces the friction

in pressurized condition and allows the seal to react

more sensitive to pressure changes.

The seal additionally has the ability to convey leakage

oil which may arise from the seal gap back into the

system.

The GODA-SPE is available in the common installation

dimensions, like e.g. for installation grooves in accordance

with DIN ISO 7425-2.

Technial data:

Pressure(bar):360

Temperature (C): -35~+100℃

Speed(m/s): 1

 Standard Materials

Slide ring : PTFE bronze

Elastic-Ring: NBR or FKM,FPM,FMVQ,EPDM

Sliding surface :  0.3-0.5

Groove Base : 0.8

Groove Side : 3.2
