聚四氟乙烯密封件-Hunger GODI rod seals

聚四氟乙烯密封件-Hunger GODI rod seals

Technial data:

Pressure(MPa):35

Temperature (C): -45/+200

Speed(m/s):1.5

 Standard Materials

Seal ring : Filled PTFE or PU

O-Ring: NBR or FKM

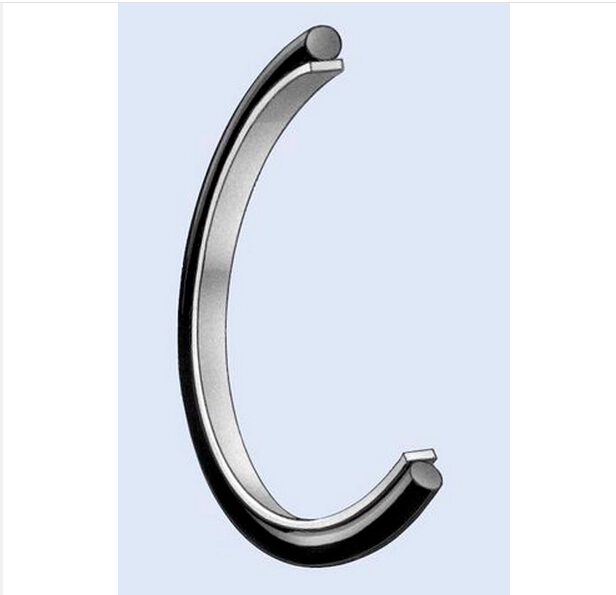

The walle sealing slide and O-ring seal type GODI is a compact

seal for piston rods. It can be used for simple and

light-duty cylinder designs used in medium pressure

ranges.

The sealing effect is provided by the slide ring being

pressed against the sealing surface by the O-ring energiser

at pressure. The surface finish should be Ra 0.1 -

0.3 μm.

Compact design, good sliding properties and low breakaway

forces are the main features of this doubleacting

seal.
