特康H型泛塞封-Turcon Variseal H

特康H型泛塞封-Turcon Variseal H

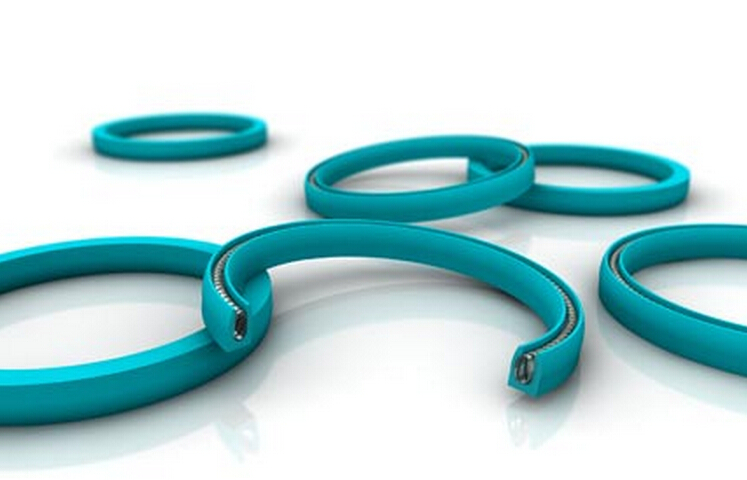

A single-acting sealing element comprised of a U-shaped Turcon ring and a coiled metaillc energizing spring. The seal has a high specific sealing force and gives gas-tight sealing even at low temperatures. Resistant to most liquids and chemicals it has unlimited shelf life. Used for radial static or slightly dynamic applications, the seal is available in versions for cryogenic service.

Technical details:

Static pressure:  40MPa

Temp Range : -100°C +200°C

Static pressure:  5,800psi

Temp Range : -150°F +390°F
