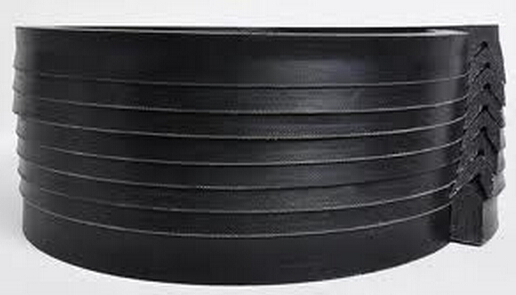

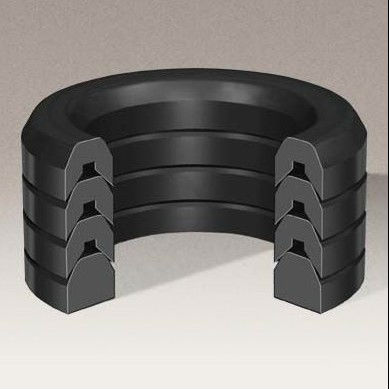

This robust packing set comprises a gland ring/female adapter, header/male adapter, and one or more intermediate V-shaped rings. The rings are tapered to give an initial interference fit when confined in the seal housing. The resulting radial force together with the fine finish of the lip, ensure a good seal at low or slack pressures. A scarf abutment is used when the seal is needed in split form.

Standard materials are suitable for use with most mineral-based hydraulic fluids, and most fire-resistant fluids of the water/ oil or water/glycol types at up to 100°C (212°F). Also resistant to air, water and most lubricating oils and greases.

 Operating capabilities

 Maximum operating pressure:

42MPa (6092psi). Modified design/ materials can considerably extend this.

 Temperature range (standard materials): -20°C to +100°C (-4°F to +212°F) for up to 250mm (9.84 in) OD, or to +120°C (+248°F) above 250mm (9.84 in) OD.

 Maximum temperature (special materials): up to +260°C (+500°F).

 Maximum surface speed:

0.5m/sm (98.4fpm). For higher speeds please consult our Technical Support Team.

Special features

 Double-acting capabilities when fitted back-to-back.

 Recommended for safety critical duties and adverse mechanical conditions.

 Excellent extrusion and wear resistance.

 Options available to suit adjustable and non-adjustable axial housing lengths.

 Available with Self-aligning Gland
