夾布U型圈-James walker Fabric U-ring seals

夾布U型圈-James walker Fabric U-ring seals

Description

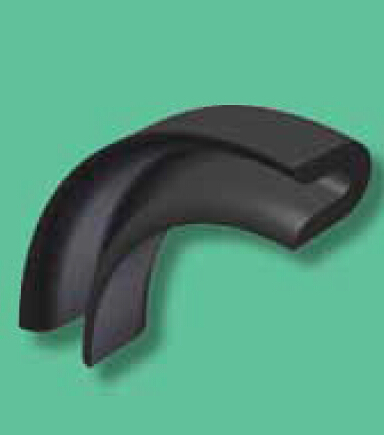

A family of moulded endless rubber U-ring seals, suitable for both rod and single

acting piston applications. Available in a square or round base profile with moulded flared lips. Also, a square base profile with post moulded chamfered lips.

Operating capabilities

• Maximum operating pressure: 10MPa (1450psi).

• Temperature range: -20°C to +120°C (-4°F to +248°F).

• Maximum surface speed: 0.5m/s (98.4fpm).

Materials of construction Manufactured as standard in 80 IRHD nitrile (NBR) elastomer. Other elastomer grades and hardnesses are available.

supplied

Available in square-based or round-based profiles, and in a range of materials.
