Description

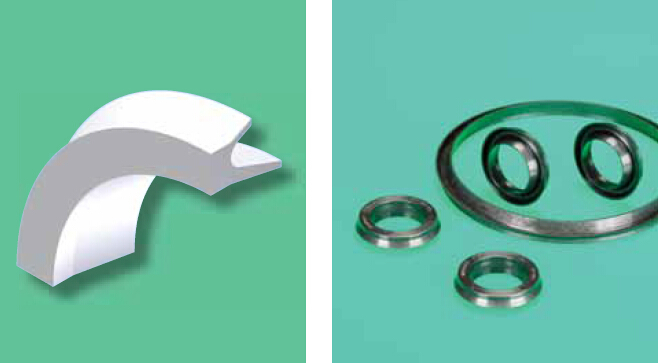

Wyclip is our highly popular clip-in scraper/wiper that proves very effective

for removing the most abrasive and tenacious foreign matter from rods.

A remarkably simple design enables the Wyclip ring to be housed with the

minimum machining of metal parts. Only an annular recess is needed for the

housing — no retaining plates or fixing bolts are required.

The ring is simply pressed into position. Positive retention is ingeniously achieved

by its outer lip springing into position behind the recess shoulder.

Special features

• Powerful scraping action for highly efficient removal of abrasive particles.

• Excludes contaminants.

• Very simple to fit with clip-in action.

• Hardwearing for long working life.

• Remains in contact with the rod under the most demanding conditions.

Typical applications

Heavy-duty operations on jack rods of earth-moving plant and other construction

equipment, forklift trucks, and any other items of industrial plant that work in

arduous conditions and need a robust rod scraper/wiper.

Operating capabilities

• Temperature range (standard material): -40°C to +100°C (-40°F to +212°F).

Materials of construction

Standard material: a specially developed semi-rigid, yet resilient, hardwearing

thermoplastic.

Special materials: PTFE, acetal and other materials are available on request.

Media capabilities

Standard materials are suitable for use with most mineral based hydraulic fluids,

and most fire-resistant fluids of the water/ oil emulsion or water/glycol types at

temperatures up to 100°C (212°F). They also resist air, water, and most lubricating

oils and greases.

Special materials extend considerably the range of application in terms of temperature and fluid compatibility. Please consult our walle sealing Technical SupportTeam.
