FS Casing & Tubing Seal FS seals / T seal / S seal

FS Casing & Tubing Seal FS seals

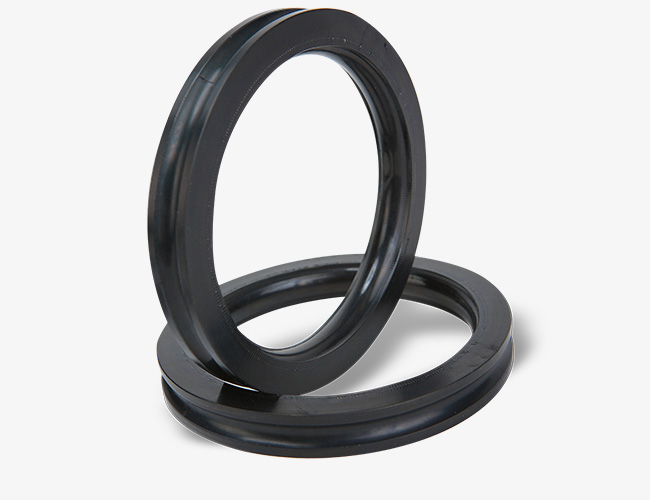

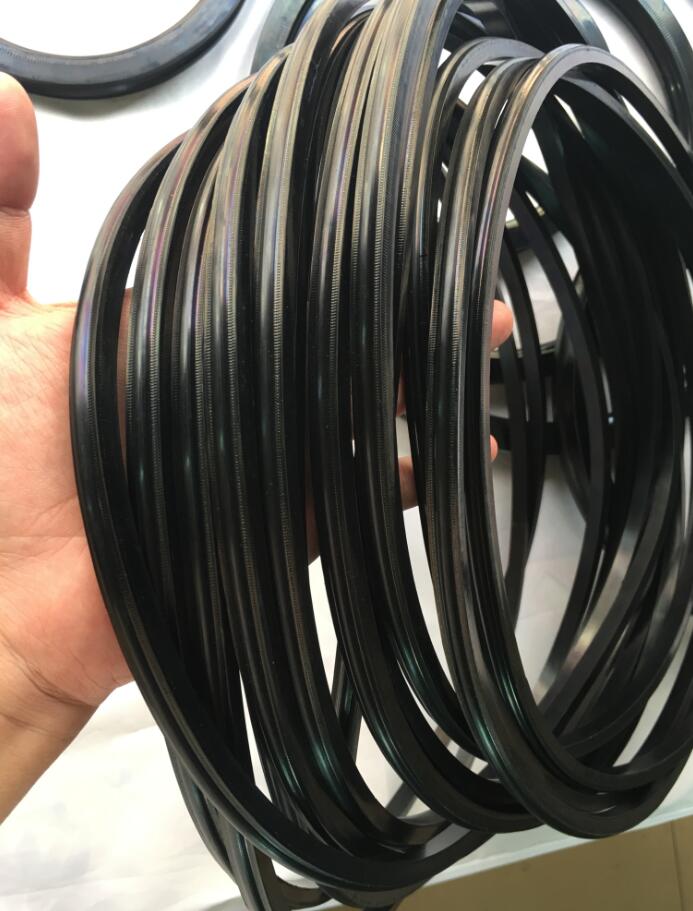

FS seals is designed to provide high performance static sealing against rough casing and tubing. It reduces installation time, correct placement in the housing and simplify installation method.

The FS seals technology is especially suited for applications where wide tolerances and varying surface finishes create difficult sealing conditions. It is utilized as a large cross-section interference seal to bridge large extrusion gaps associated with sealing on rough mill casing. The shape of the FS seals design allows for a high level of deflection across the full range of operating temperatures, without the risk of gland overfill.

Features and Benefits

● Range of elastomeric and spring material combinations

● Pressure energized

● Can be retrofitted to existing groove

● Ability to seal large or inconsistent extrusion gaps

● Flexible seal for easy installation or field repair

● Handles aggressive chemicals and abrasive oilfield applications

● Large cross-section / diameter ID version of S- seal

● Standard and custom sizes

Applications and Services

● Casting and tubing hanger

● Stab-in operations

● High pressure pipelines

● Hydraulic Cylinders

● Fluid and gas applications

● Wide ranges of temperature and pressure

Manufacturing and Production Processes

● Molding

Sizing

● API standard Casing Sizes

● Custom Sizing Options

Material Selection
Base Material	Useful Temperature Range		Application
Base Material	℉	℃	Application
NBR	-25 to +250	-31 to +121	Petroleum oils and fuels, water, glycols, silicones
HNBR	-45 to +300	-42 to +148	General service. Improved wear and abrasion resistance.Good for Harshwell service, water steam and amine corrosion inhibitors.
FKM / FPM	-10 tO +430	-23 to 220	Suitable for high temperature, aliphatic and aromatic hydrocarbons.
FEPM / Aflas	0 to +450	-17 to +232	Sour petroleum oils and fuels, acids, bases, amines, steam
Custom compounds	Please contact us, we will make per your request

Nominal	Ø BB Bore		DD Housing
Casing Size			Depth
*( see Note)**	mm	inch	mm	inch
	103.19	4.063	21.21	0.835
	119.06	4.688	21.21	0.835
	133.35	5.25	21.21	0.835
	146.05	5.75	21.21	0.835
	152.4	6	21.21	0.835
	158.75	6.25	21.21	0.835
	171.45	6.75	21.21	0.835
	177.8	7	21.21	0.835
	184.15	7.25	21.21	0.835
	200.03	7.875	21.21	0.835
	209.55	8.25	21.21	0.835
	225.43	8.875	21.21	0.835
	228.6	9	21.21	0.835
	250.83	9.875	21.21	0.835
	260.35	10.25	21.21	0.835
	276.23	10.875	21.21	0.835
	282.58	11.125	21.21	0.835
	304.8	12	25.4	1
	333.38	13.125	25.4	1
	336.56	13.25	25.4	1
	374.65	14.75	25.4	1
	381	15	25.4	1
	390.53	15.375	25.4	1
	441.33	17.375	25.4	1
	508	20	25.4	1
	560.39	22.063	39.69	1.563
	662	26.063	39.69	1.563
	814.4	32.063	39.69	1.563
